Feature

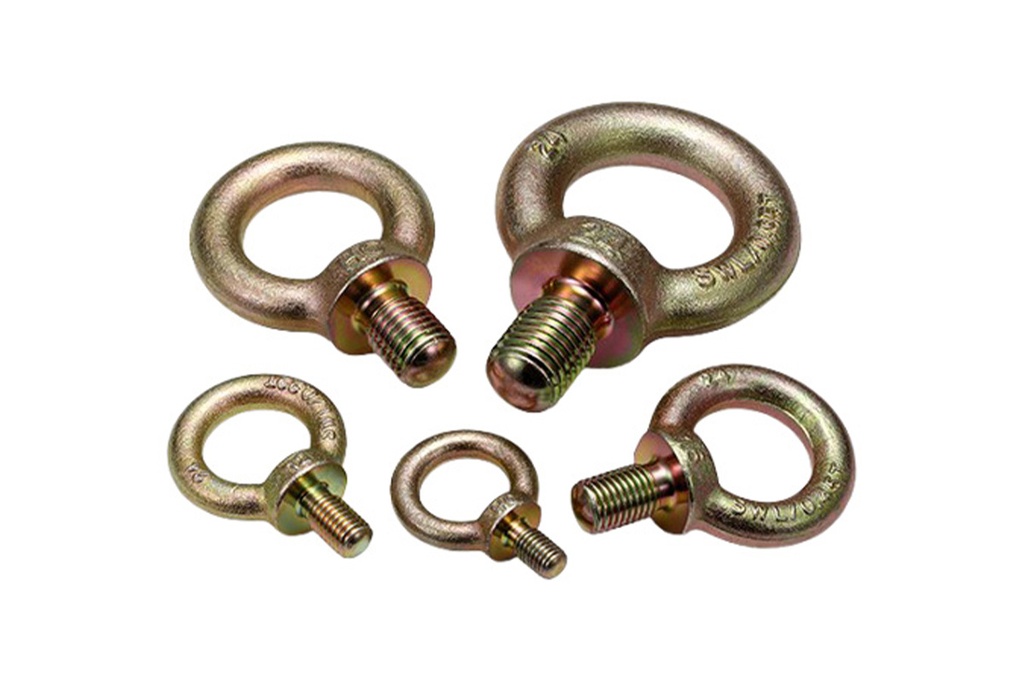

Eye bolt lifting and Eye nut (ring-shaped lifting rings and hanging caps) are hoisting devices with annular rings that are used to lift and secure objects.
The main function is to lift and hoist and hoist heavy objects. The ring head lifting ring can be easily connected to hooks, straps or other slings to help safely lift and move items and secure items, such as securing goods to transport equipment during transportation. On or fixed at the construction site.
In terms of assembly and installation, when installing large equipment or structural components, eye bolt lifting can be used for connection and support, making the assembly process more convenient.
Load-bearing supports can be used to bear and distribute the weight of items, such as when hanging lamps, fixtures or decorations, eye rings can provide necessary support.
Our company's Eye bolt and Eye nut are made of forged materials with high tensile strength, which ensures that they can withstand large loads and provide safety.

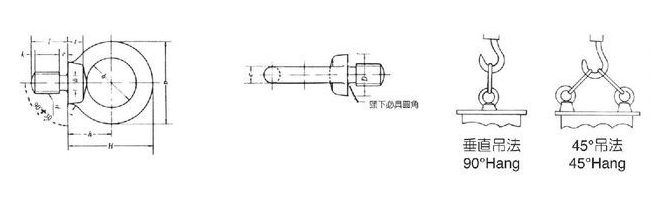

Dimensions
Specification
Unit: mm
| (d) | a | b | c | D | t | h | H (Reference) | I | ENSURE SAFE LOAD Hang(90°) KN | ENSURE SAFE LOAD Hang(45°) KN |
|
M8
| 32.6 | 20 | 6.3 | 16 | 5 | 17 | 33.3 | 15 | 0.785 | 0.785 |
| M10 | 41 | 25 | 8 | 20 | 7 | 21 | 41.5 | 18 | 1.47 | 1.47 |
| M12 | 50 | 30 | 10 | 25 | 9 | 26 | 51 | 22 | 2.16 | 2.16 |
|
M16 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 | 4.41 | 4.41 |
|
M20 | 72 | 40 | 16 | 35 | 13 | 35 | 71 | 30 | 6.18 | 6.18 |
|
M24 | 90 | 50 | 20 | 45 | 18 | 45 | 90 | 38 | 9.32 | 9.32 |
| M30 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 | 14.7 | 14.7 |
| M36 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 | 22.6 | 22.6 |
| M42 | 151 | 80 | 35.5 | 80 | 30 | 75 | 150.5 | 65 | 33.3 | 33.3 |
| M48 | 170 | 90 | 40 | 90 | 35 | 85 | 170 | 70 | 44.1 | 44.1 |
| M64 | 210 | 110 | 50 | 110 | 42 | 105 | 210 | 90 | 88.3 | 88.3 |
