Feature

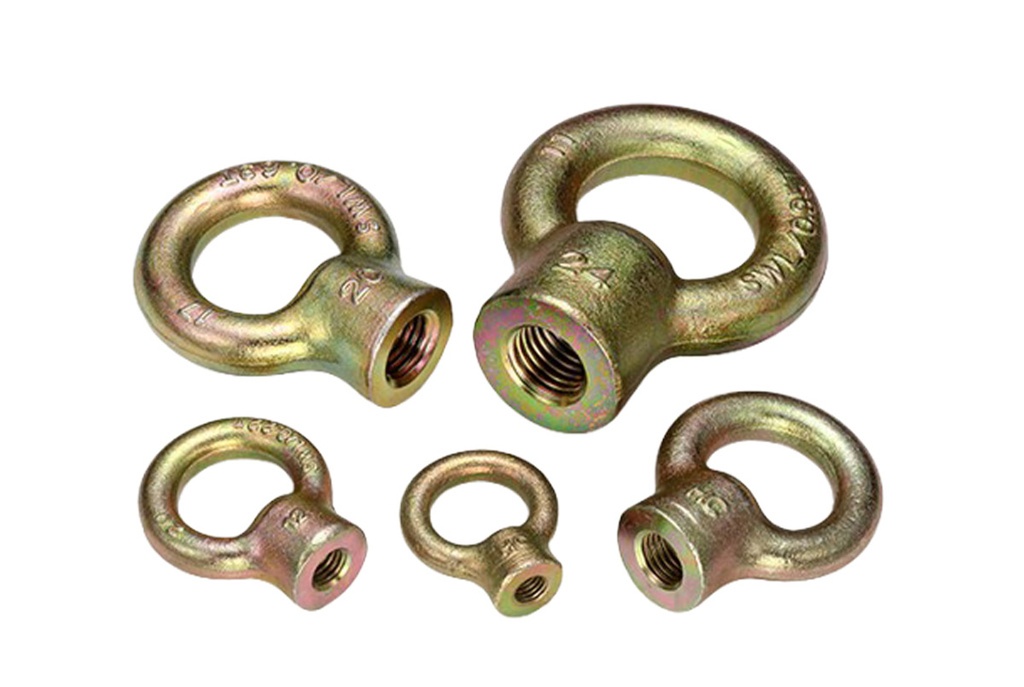

EYE NUT is a kind of hoisting device with annular ring base and internal teeth, which is used for lifting and fixing items. The main function is to lift and lift heavy objects. The eye crane can be easily connected to hooks, slings or other slings to help safely lift and move items and secure items, such as securing goods to transportation equipment during transportation, or fixing devices at construction sites. In terms of assembly and installation, when installing large equipment or structural components, the eye nut can be used for connection and support, making the assembly process more convenient. Load-bearing supports can be used to bear and distribute the weight of items, such as when hanging lamps, fixtures or decorations. Eye nut can provide necessary support. Our company's EYE NUT materials are made of forged materials with high tensile strength, which ensures that they can withstand large loads and provide safety protection.

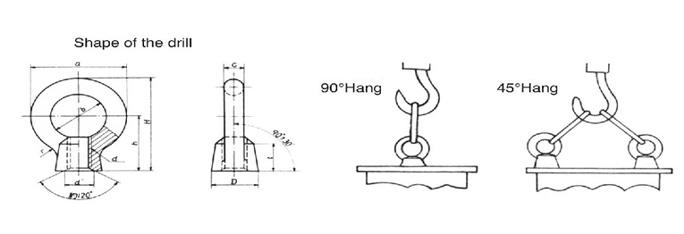

Dimensions
Specification
Unit: mm
| (d) | a | b | c | D | t | h | H (Reference) | I | ENSURE SAFE LOAD Hang(90°) KN | ENSURE SAFE LOAD Hang(45°) KN |
|
M8
| 32.6 | 20 | 6.3 | 16 | 5 | 17 | 33.3 | 15 | 0.785 | 0.785 |
| M10 | 41 | 25 | 8 | 20 | 7 | 21 | 41.5 | 18 | 1.47 | 1.47 |
| M12 | 50 | 30 | 10 | 25 | 9 | 26 | 51 | 22 | 2.16 | 2.16 |
|
M16 | 60 | 35 | 12.5 | 30 | 11 | 30 | 60 | 27 | 4.41 | 4.41 |
|
M20 | 72 | 40 | 16 | 35 | 13 | 35 | 71 | 30 | 6.18 | 6.18 |
|
M24 | 90 | 50 | 20 | 45 | 18 | 45 | 90 | 38 | 9.32 | 9.32 |
| M30 | 110 | 60 | 25 | 60 | 22 | 55 | 110 | 45 | 14.7 | 14.7 |
| M36 | 133 | 70 | 31.5 | 70 | 26 | 65 | 131.5 | 55 | 22.6 | 22.6 |
