Spring Type Straight Pins-Slotted

Spring Type Straight Pins-Slotted

According to: JIS B 2808-1999
Material: Carbon Spring Steel
Hardness: HRC45~50
Surface Treatment: Black Oxide

Feature

Spring pin (SPRING TYPE STRAIGHT PINS-SLOTTED) is a kind of fixed element with simple structure but powerful function, which is shock-resistant and impact-resistant, easy to install and highly adaptable. It has become an indispensable fastening element in various mechanical equipment. It is suitable for various industrial applications that require strong fixing force and can be disassembled and assembled repeatedly. It is an ideal substitute for traditional solid pins and screws.

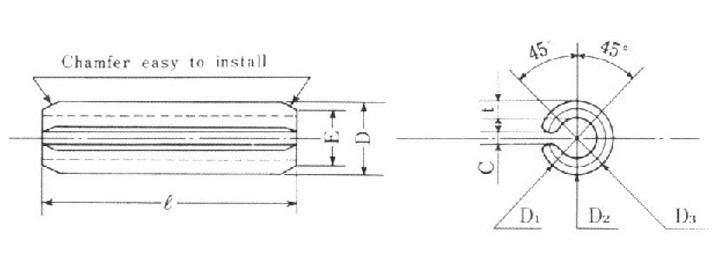

Dimensions

Specification

Unit: mm

Nominal Dia.			1	1.2	1.5	1.6	2	2.5	3	3.5	4	4.5	5	6	8	10	12	13
Dimension	D	Max.	1.2	1.4	1.7	1.8	2.25	2.75	3.25	3.84	4.4	4.84	5.4	6.4	8.6	10.6	12.5	13.7
	D	Min.	1.1	1.3	1.6	1.7	2.15	2.65	3.15	3.7	4.2	4.7	5.2	6.2	8.3	10.3	12.3	13.4
	t	Basic	0.2	0.25	0.3	0.3	0.4	0.5	0.6	0.7	0.8	0.9	1	1.2	1.6	2	2	2.5
	E	Max.	0.9	1.1	1.4	1.5	1.9	2.4	2.9	3.4	3.9	4.3	4.8	5.8	7.8	9.8	11.7	12.7
Double shear strength kgf (KN)			70	104	158	171	281	440	633	861	1130	1425	1760	2532	4500	7030	8790	1150
Double shear strength kgf (KN)			(0.69)	(1.02)	(1.55)	(1.68)	(2.76)	(4.3)	(6.2)	(8.44)	(11.08)	(13.97)	(17.25)	(24.83)	(44.13)	(68.94)	(86.2)	(112.78)
Hole		Basic	1	1.2	1.5	1.6	2	2.5	3	3.5	4	4.5	5	6	8	10	12	13
Tol.		Tol.	+0.08 0	+0.08 0	+0.08 0	+0.08 0	+0.09 0	+0.09 0	+0.09 0	+0.12 0	+0.12 0	+0.12 0	+0.12 0	+0.12 0	+0.15 0	+0.15 0	+0.2 0	+0.2 0
