Feature

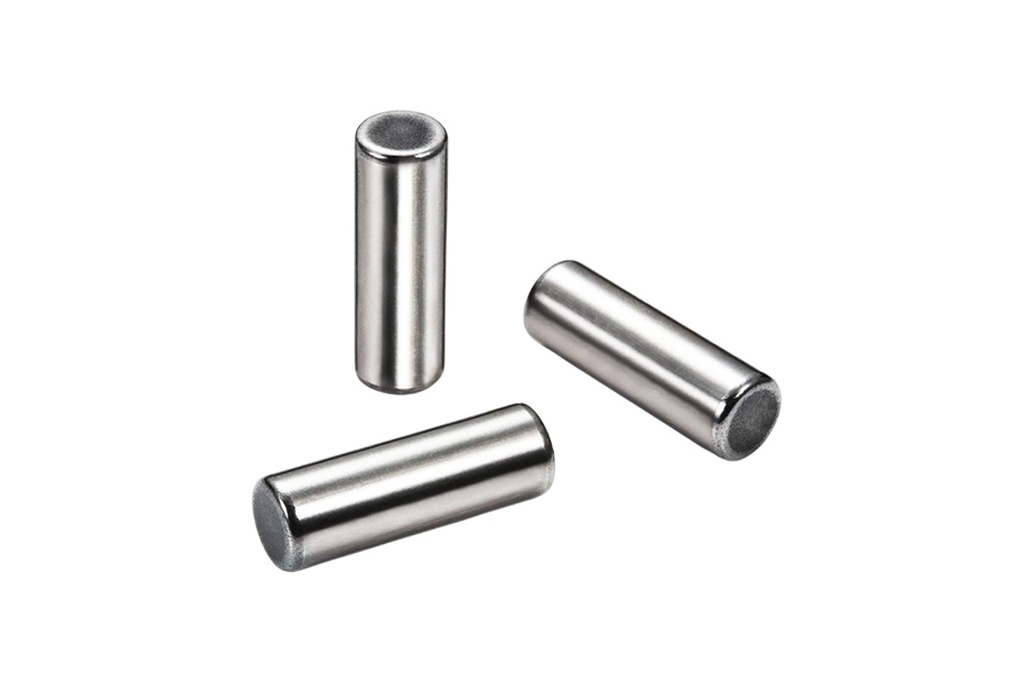

Parallel Pin is a precision-machined cylindrical metal rod that ensures precise alignment between parts and is mainly used for positioning, connecting or transmitting torque. It relies on interference fit with holes or appropriate fixing methods to ensure accurate alignment and stability between mechanical parts. Suitable for mechanical positioning and torque transmission. Its multiple matching methods, durable materials and multiple standards enable it to play a key role in machinery, automobiles, electronics and other fields.

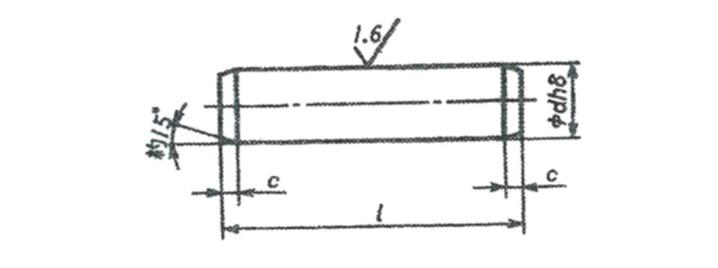

Dimensions
Specification
Unit: mm
| Nom Size |
d |
d Tolerance NO.B (h8) | c Approx | l Length nominal |
|
2 | 2.0 | 0 ~ -0.040 | 0.25 | 10 ~ 38 |
| 2.5 | 2.5 | 0 ~ -0.040 | 0.3 | 10 ~ 40 |
| 3 | 3.0 | 0 ~ -0.040 | 0.4 | 10 ~ 40 |
| 4 | 4.0 | 0 ~ -0.048 | 0.5 | 10 ~ 55 |
| 5 | 5.0 | 0 ~ -0.048 | 0.63 | 16 ~ 70 |
| 6 | 6.0 | 0 ~ -0.048 | 0.8 | 20 ~ 100 |
| 8 | 8.0 | 0 ~ -0.058 | 1 | 25 ~ 120 |
| 10 | 10 | 0 ~ -0.058 | 1.2 | 30 ~ 150 |
| 12 | 12 | 0 ~ -0.070 | 1.6 | 40 ~ 150 |
